Fields with high water cut can decrease the oil production rates. BVOEL can deploy WSO/ PM fleet to reduce the impact of water-cut by pumping cross-linked polymeric liquids which reduces the water production and in-turn increases the oil production rates. The fleet consists of a blending unit, mixing tanks (capacity upto 45 m3) and a pumping unit (pressures upto 10,000 psi and rates upto 1200 lpm). BVOEL has marked its efficiency in WSO activities by performing 50+ jobs in a very short period.

Water Shut-Off (WSO)/ Profile Modification (PM):

1. Blending unit –

• • Max. pumping rate : 30 - 120 bbl./min (Suction and discharge pumps)
  • Mixing tub capacity : 2 - 5 m 3
  • Data Acquisition System (DAS) with real-time monitoring systems (RTMS)
  • Liquid and solid dosing system
  • Max. proppant concentration : up-to 20 ppa.
  • Auto/ manual operation mode

      2. Mixing tanks –

• • Storage capacity : upto 50 m 3
  • Agitators : 2 on each tank

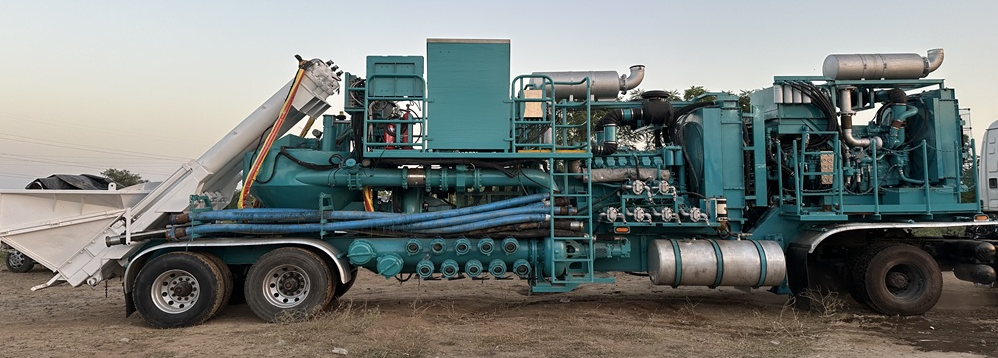

      3. Pumping unit –

• • Max. pressure : upto 10,000 psi
  • Discharge rates : upto 1200 lpm
  • Data Acquisition System (DAS) with real-time monitoring systems (RTMS)
  • Displacement tank : 3 m 3 each (twin tank system)
